Piezo Pressure Transmitter
Application

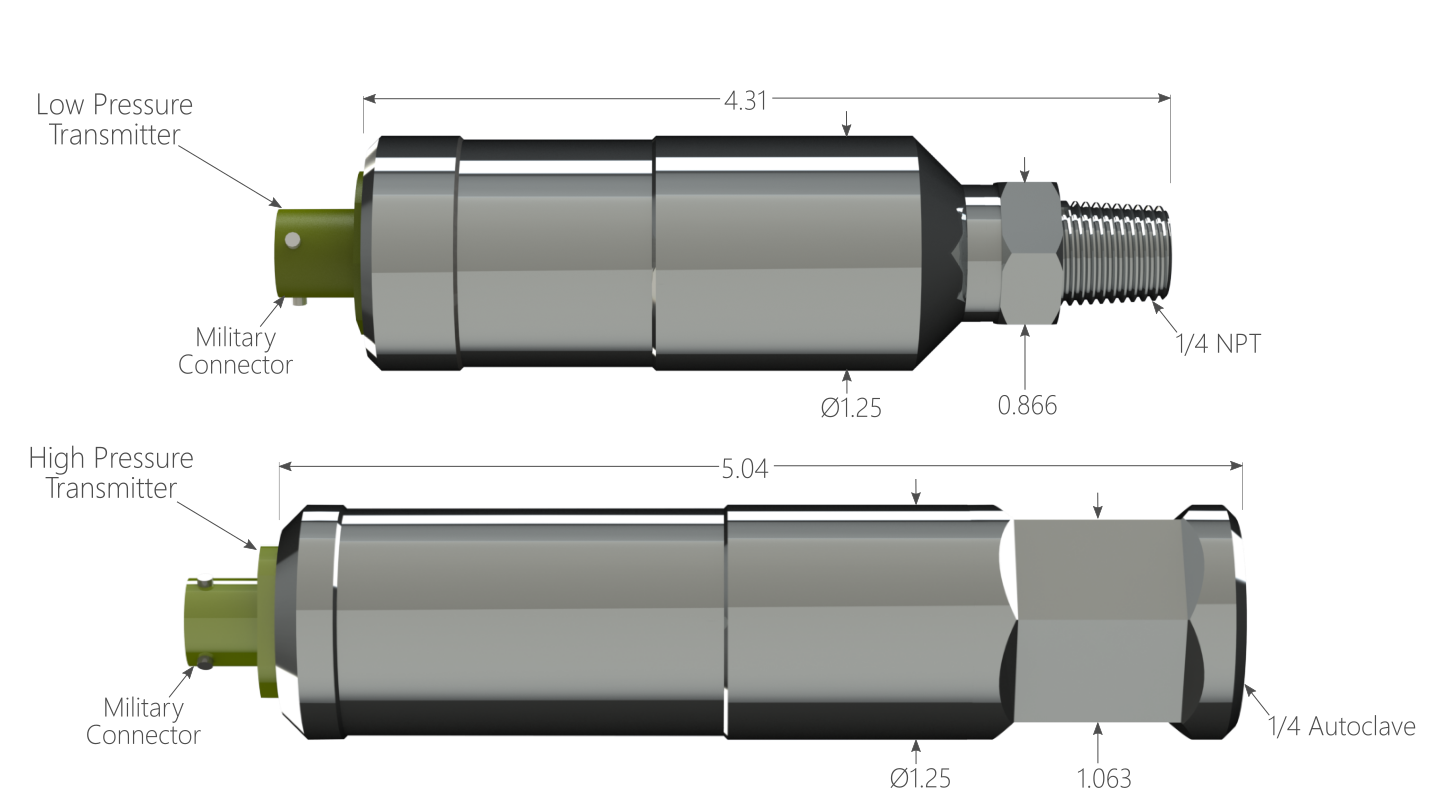

The Piezo Pressure Transmitter uses an electron beam welded piezo sensor to measure pressure of the wellbore at surface. There is a 4-pin military connector for electrical connections at the top, and a pressure fitting to connect to the pressure port at the bottom. It is quick and easy to install in the wellhead, with a customizable pin or box connection to meets the user’s needs. The Piezo Pressure Transmitter connects to DataCan's Permanent/SRO system, Data2Desk or Multi-Channel Logger.
Transform any piezo pressure transmitter into a digital chart recorder using a laptop, DataCan's chart recorder software, and a rugged USB cable available in lengths up to 100 ft. The robust cable connects directly to the transmitter, while the intuitive software provides simple one-button start and stop operation. Data is continuously logged to a user-defined text file for easy viewing or sharing, eliminating the need to store and manage paper Barton charts. Multiple transmitters can be recorded simultaneously, making this an ideal solution for users seeking a modern, digital alternative to conventional chart recorders.
Features
- Easy to Use Software
- Custom Pin or Box Connections Upon Request
- Intrinsically Safe Option
- Can Operate as a Modbus Device
- Connects to DataCan's Permanent/Surface Read Out System, Data2Desk, and Multi-Channel Logger
Benefits
The Piezo Pressure Transmitter has a compact design and low power consumption, making it cost effective for the customer. It also produces the same high quality data that our downhole gauges produce; data that is high accuracy and high resolution while being very reliable with an electron beam welded sensor.
