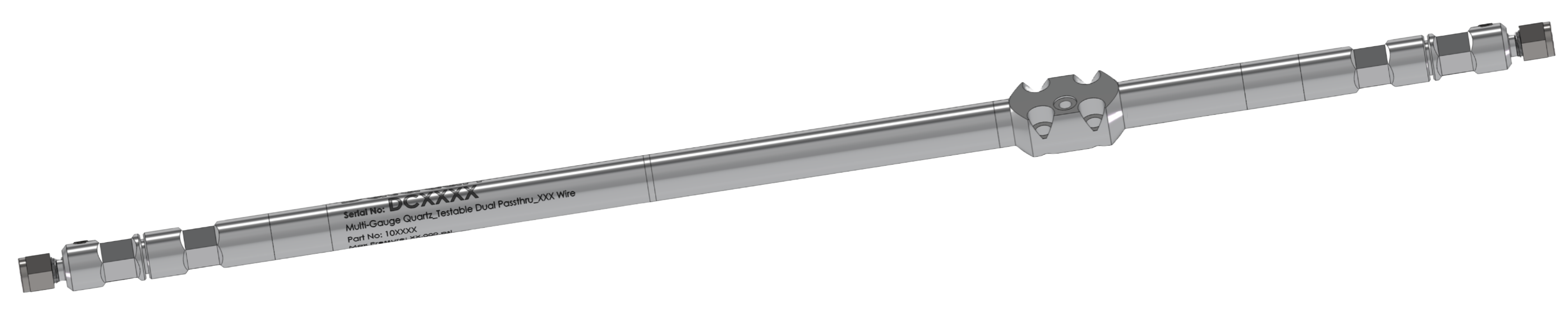

0.75" Quartz Passthru
Application
Connect up to 10 permanent pressure gauges on a single conductor with DataCan's Multi-Gauge Quartz Passthru Tool. This tool comes in a standard version as well as a pressure testable version for quality assurance.
Features
- 10 Gauges on a Single Conductor
- No WYE Needed
- Fully Welded Construction
- Hermetically Sealed
- Dual Protection Metal to Metal Seal Design
- Corrosion Resistant - NACE MR0175
Benefits
The Multi-Gauge Passthru Quartz Tool is quick and easy to install and produces high quality well or reservoir data in real time. Its fully welded construction, dual protection metal to metal seal design, and hermetically sealed electronics, make it a very reliable gauge. Since it acts as both a gauge and a WYE splice, it helps reduce the cost of the permanent system while increasing reliability.

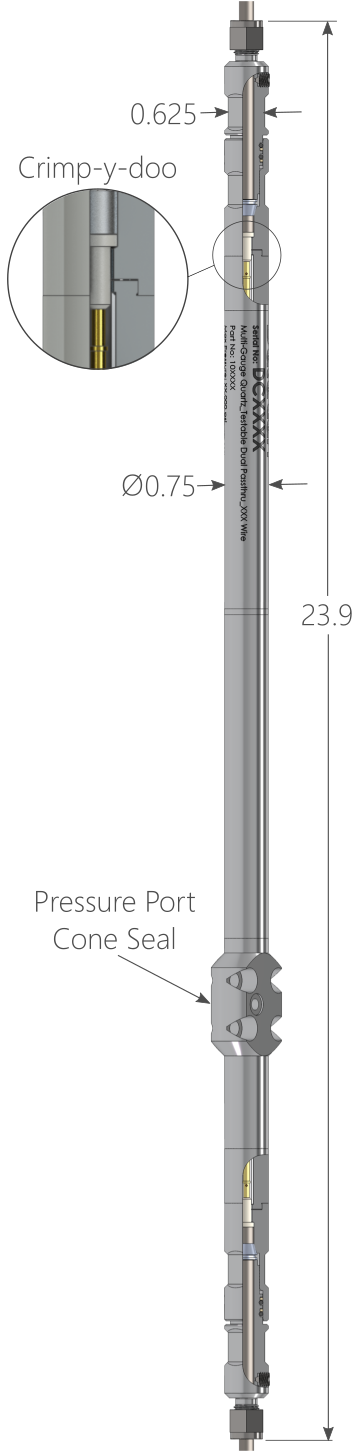

The Crimp-y-doo, at the heart of DataCan's new gauge design, ensures correct wire prep and prevents the TEC conductor from pulling up into the armor. If you find yourself assembling a gauge without a crimpy-doo, you just better crimp-y-don't!
Quick Specs
| OD | Maximum Temperature | Maximum Pressure | |
|---|---|---|---|
 |
0.75" | 150°C | 20,000 psi |
