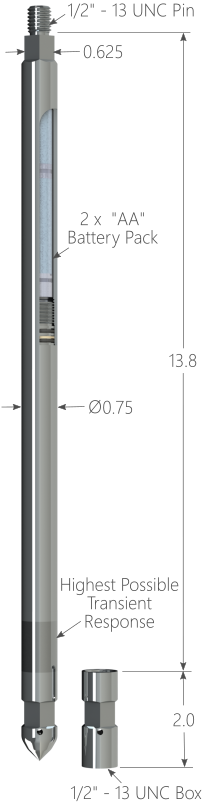

0.75" QTF
Application
When limited space is available for a gauge carrier, e.g. coiled tubing and DST operations, a 0.75" OD is currently the smallest diameter quartz memory tool available. The 0.75" QTF gauge uses a AA battery, the smallest form factor available for powering a quartz tool.
*Make sure to use the battery calculator in the DataCan download software to determine maximum job length for specific applications.
Features
- 15” Long
- 0.0001% Full-Scale Resolution
- 177°C
- 16.5 Million Sample Capacity
- Inconel 718 and MP35N – NACE MR0175
- Electron Beam Welded
- Fast Temperature Response
- Easy to Use Software
Benefits
The world's smallest quartz gauge provides operators with the highest data stability and resolution when space is tight. DataCan recommends quartz gauges in all wells with bottom hole temperatures above 135°C.
Quick Specs
| OD | Maximum Temperature | Maximum Pressure | Memory Capacity | |
|---|---|---|---|---|
 |
0.75" | 177°C | 15,000 psi | 16.5 Million Samples |
